HQF-24 Quarter Folder
Here are a few ideas generated by A.i.
HQF-24 SMART FOLDER
Folding Precision. Production Power.
Faster. More accurate. Easier to operate.

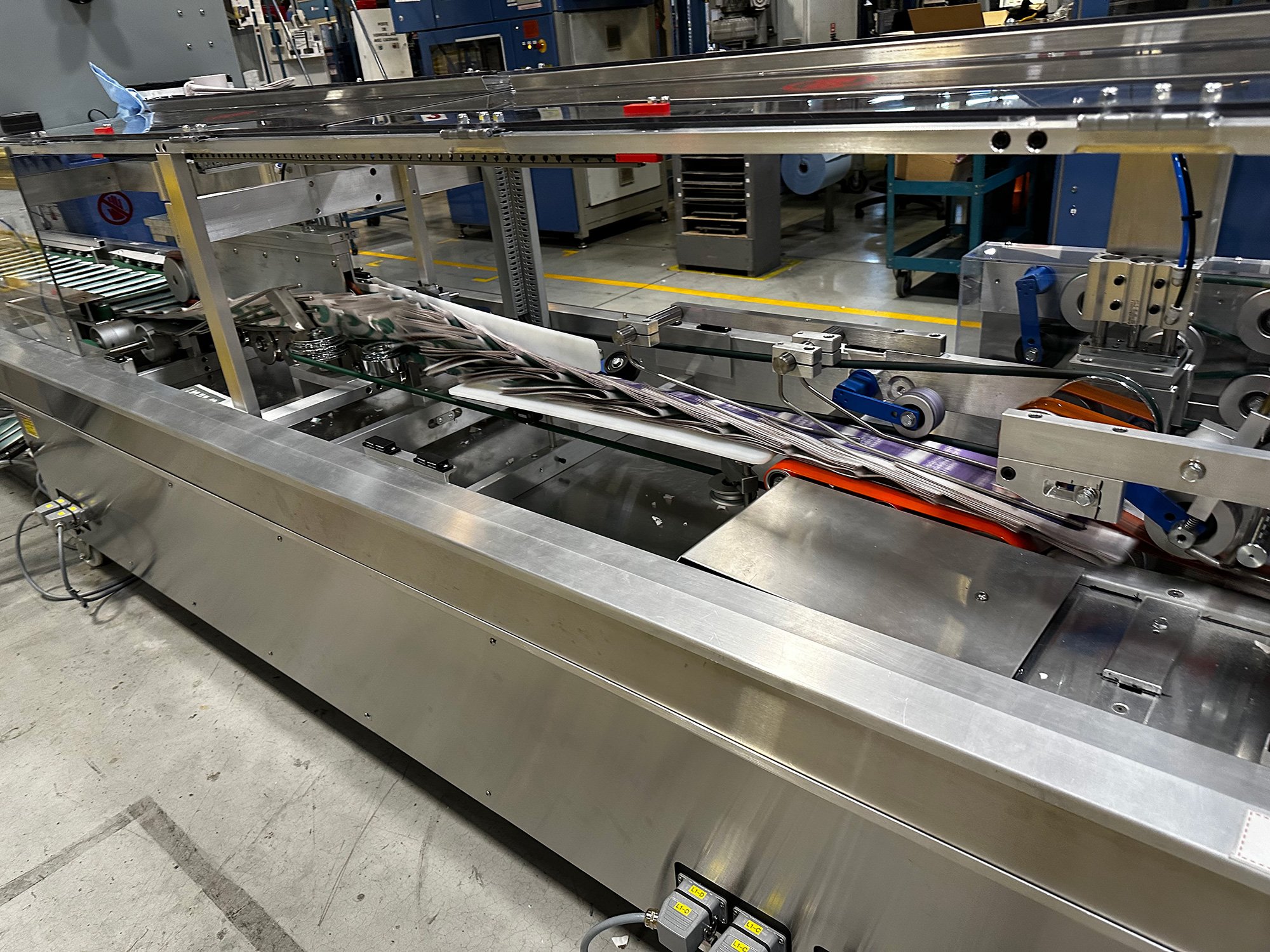

The HQF-24 Smart Folder by Lovaghy Enterprise is designed for demanding, high-volume printing environments. Its advanced design, proprietary product-centering technology and intelligent controls deliver accurate, consistent folding—even as production speeds and pagination increase.
Built to produce more, with fewer compromises.
________________________________________
A NEW APPROACH TO FOLDING
Centered product. Controlled fold.

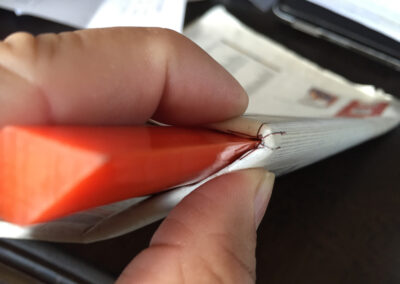

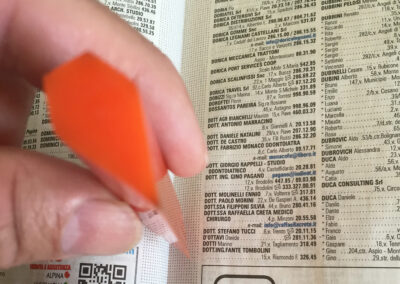

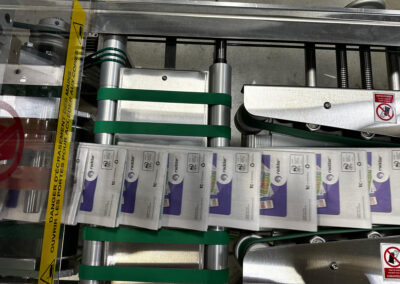

At the heart of the HQF-24 is Lovaghy Enterprise’s proprietary V-shaped polyurethane belt.

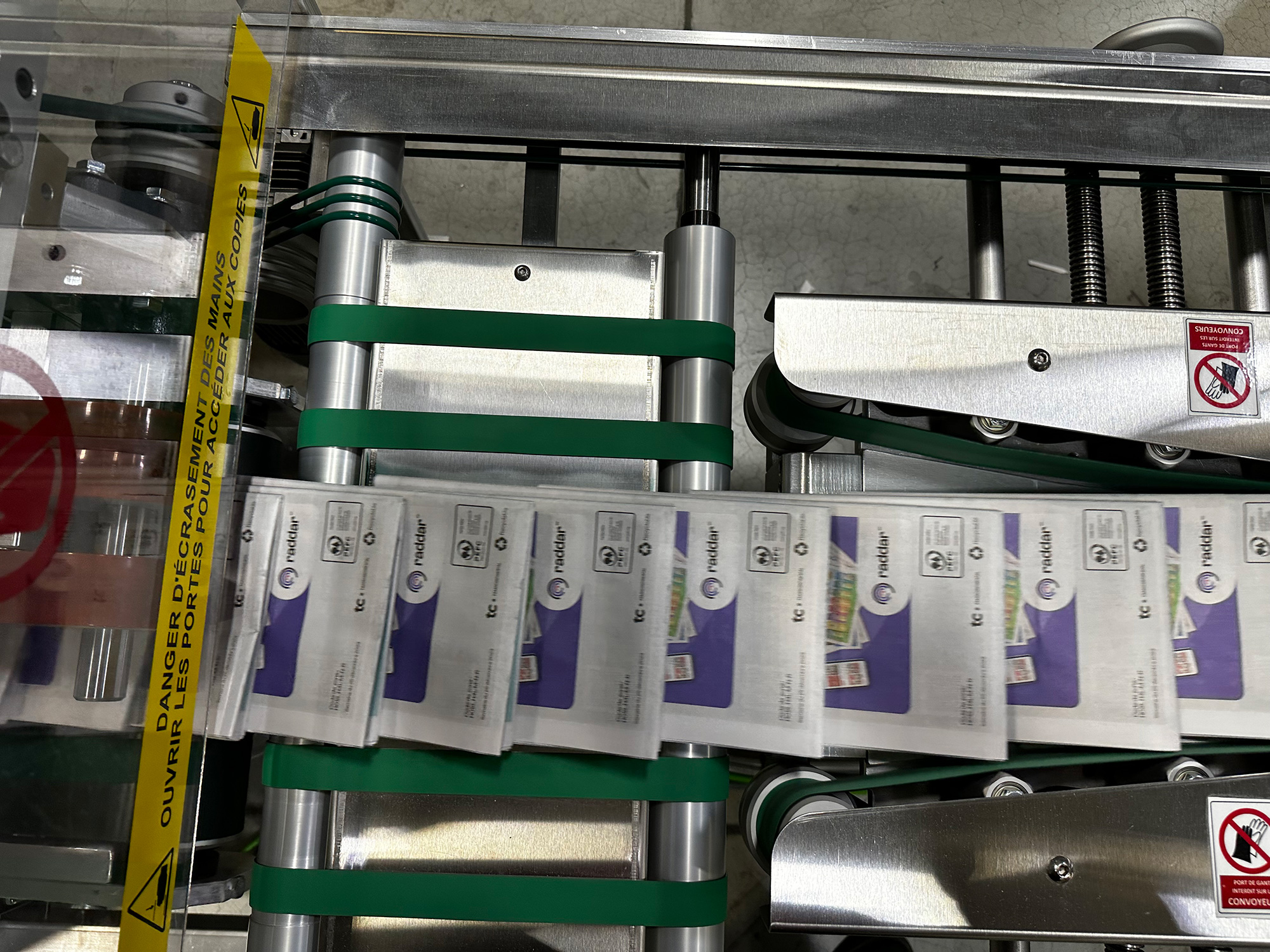

Combined with two independent vibrating belt joggers, it quickly and gently centers the product before it enters the folding section.
The result?
Better product positioning, greater folding accuracy and more consistent production.

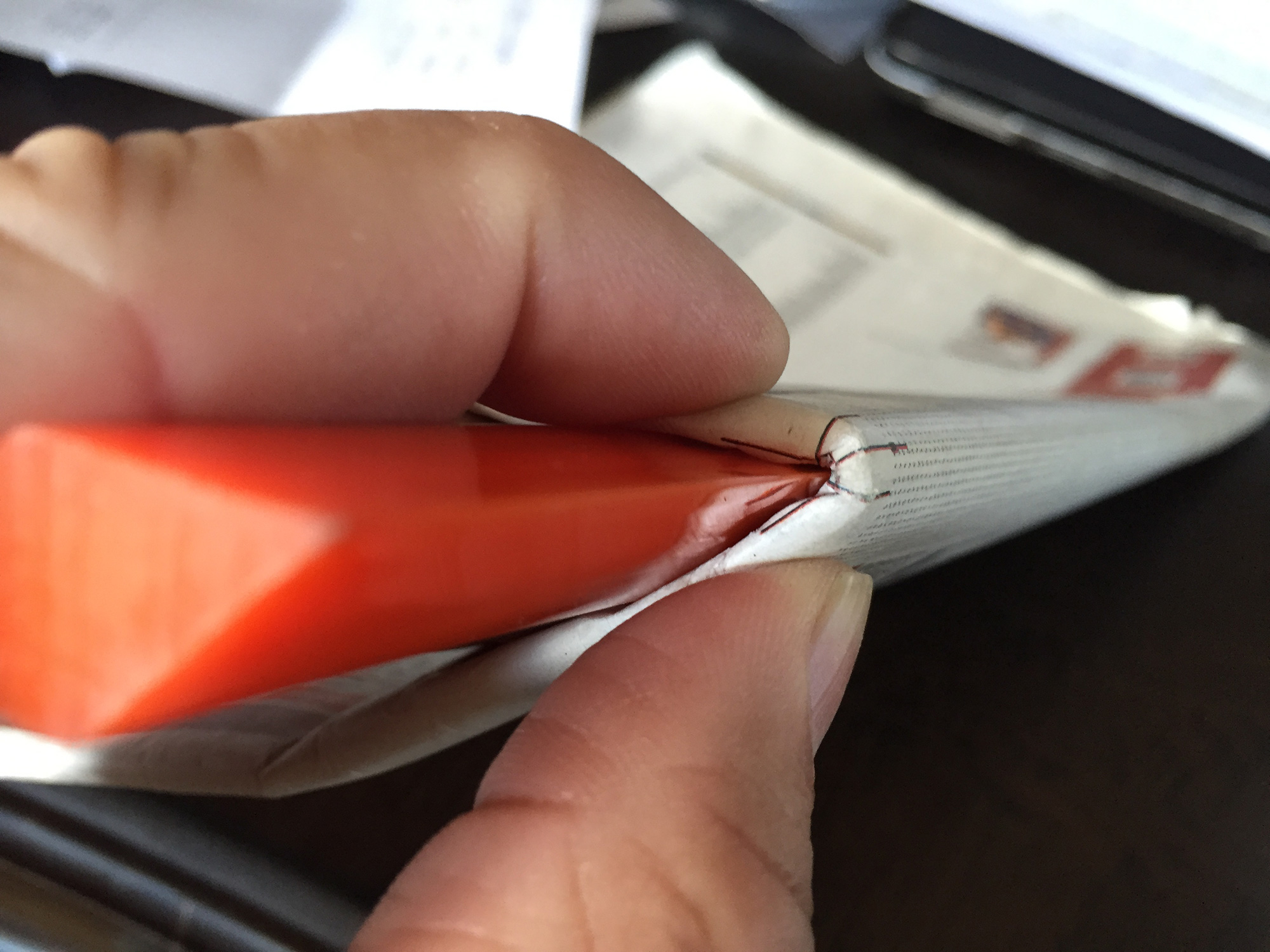

The V-shaped belt also helps define the new spine position while the product is still partially held in the jogger section.
________________________________________
BUILT FOR HIGH-SPEED PRODUCTION
When production speeds up, precision must keep up.
The HQF-24 handles a wide range of product sizes and paginations while maintaining excellent folding accuracy.

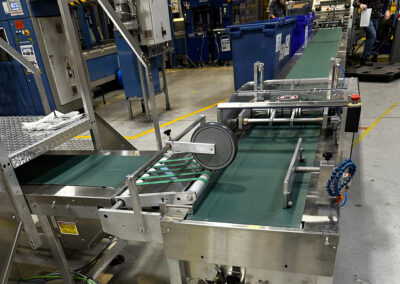

It can receive products directly from a press, mailroom or offline operation, with a wide range of shingle spacing.
More flexibility. One powerful folding solution.
________________________________________
JAM RESISTANT
Because downtime costs money.
The Smart Folder is engineered to minimize jams and better handle slightly skewed copies and irregularities entering the machine.
More tolerance. Fewer interruptions. Smoother production.
________________________________________
SIMPLER OPERATION. MORE PRODUCTION.
Designed to make the operator’s job easier.

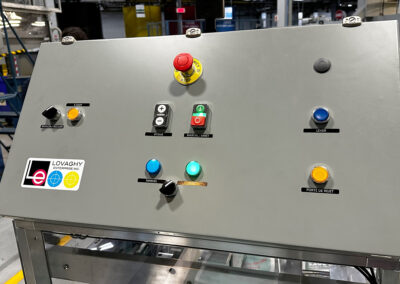

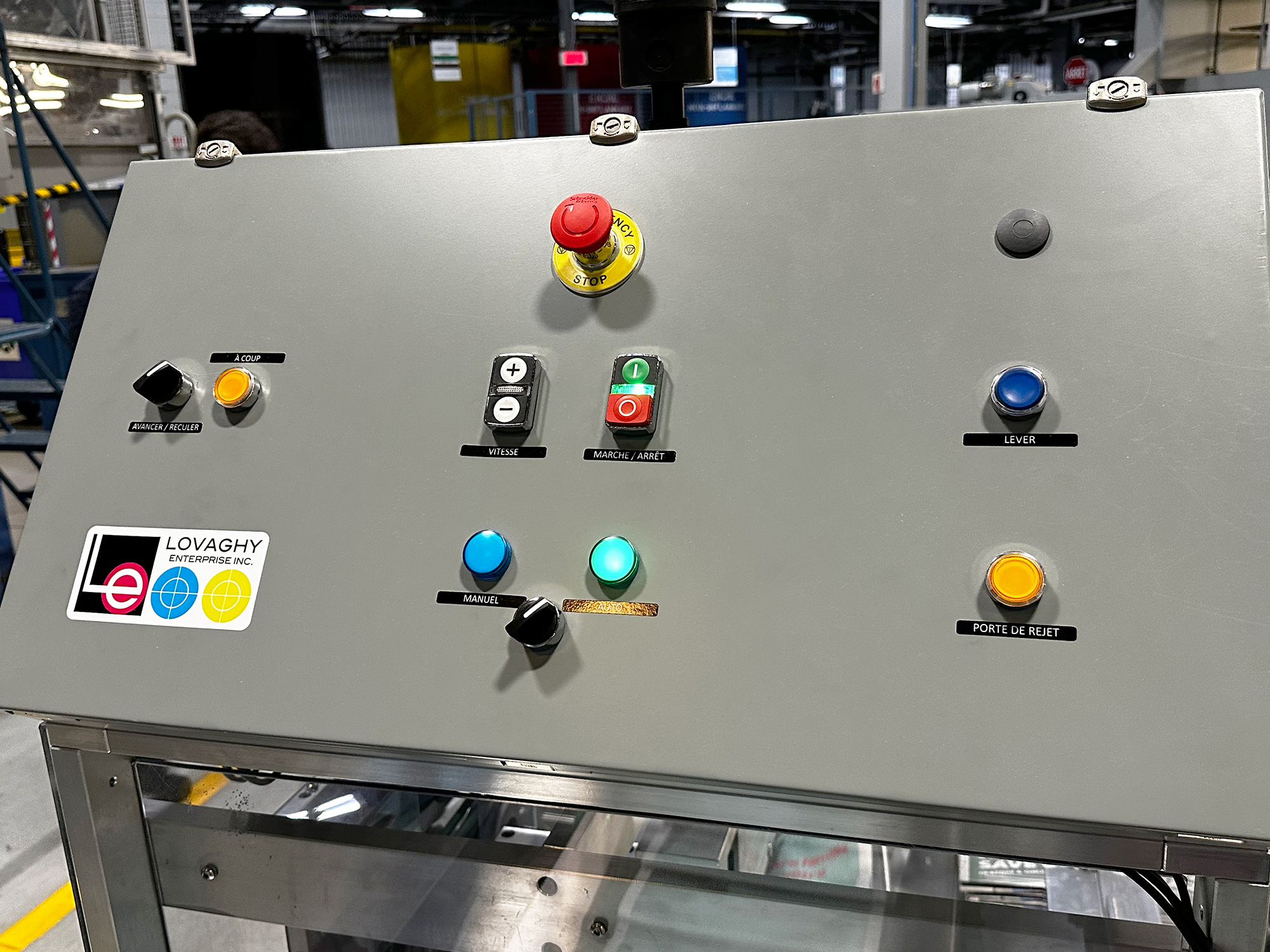

The new control panel provides a modern, intuitive interface.
Faster setup, fewer adjustments and fewer components make the HQF-24 easier to configure and operate—even with less experienced operators.
Simple to set up. Simple to operate. Built to produce.
________________________________________
SIMPLIFIED MAINTENANCE
Fewer parts. Less maintenance.
The HQF-24 uses fewer components than competing designs. Polyurethane belts are the primary consumables requiring periodic replacement.
A simpler design means less maintenance and more production time.
________________________________________
SMART CONTROL & REMOTE SUPPORT
Technology working for your production.
The Smart Folder Display uses a programmed PLC to control the machine’s electrical components and drives. By entering the product pagination and shingle spacing, the system automatically provides optimized speed ratios for each drive.
Internet Ready
With a dedicated Internet connection, Lovaghy technicians can perform software upgrades and monitor machine performance remotely from Montreal.
Your equipment is on the production floor. Our expertise can be there remotely.
________________________________________
HQF-24 ADVANTAGES AT A GLANCE
PRECISION
The proprietary V-shaped belt and dual vibrating joggers keep products accurately positioned before folding.
FLEXIBILITY
Handles a wide range of product sizes and paginations.
RELIABILITY
Designed to minimize jams and better tolerate slightly skewed products.
PRODUCTIVITY
Faster setup, fewer adjustments and optimized speed control.
MAINTENANCE
Fewer components and a simplified design reduce maintenance requirements.
CONTROL
A centralized 15-inch diagonal touchscreen provides convenient access to machine controls.
________________________________________
BUILT FOR HEAVY-DUTY PRODUCTION
The HQF-24 combines a robust frame with components designed for demanding production environments.
Key construction features include:
Custom extruded and machined aluminum framing
16-gauge stainless steel covers
Heavy-duty swivel locking casters
High-quality bearings
Sprockets and timing belts for positive traction and accuracy

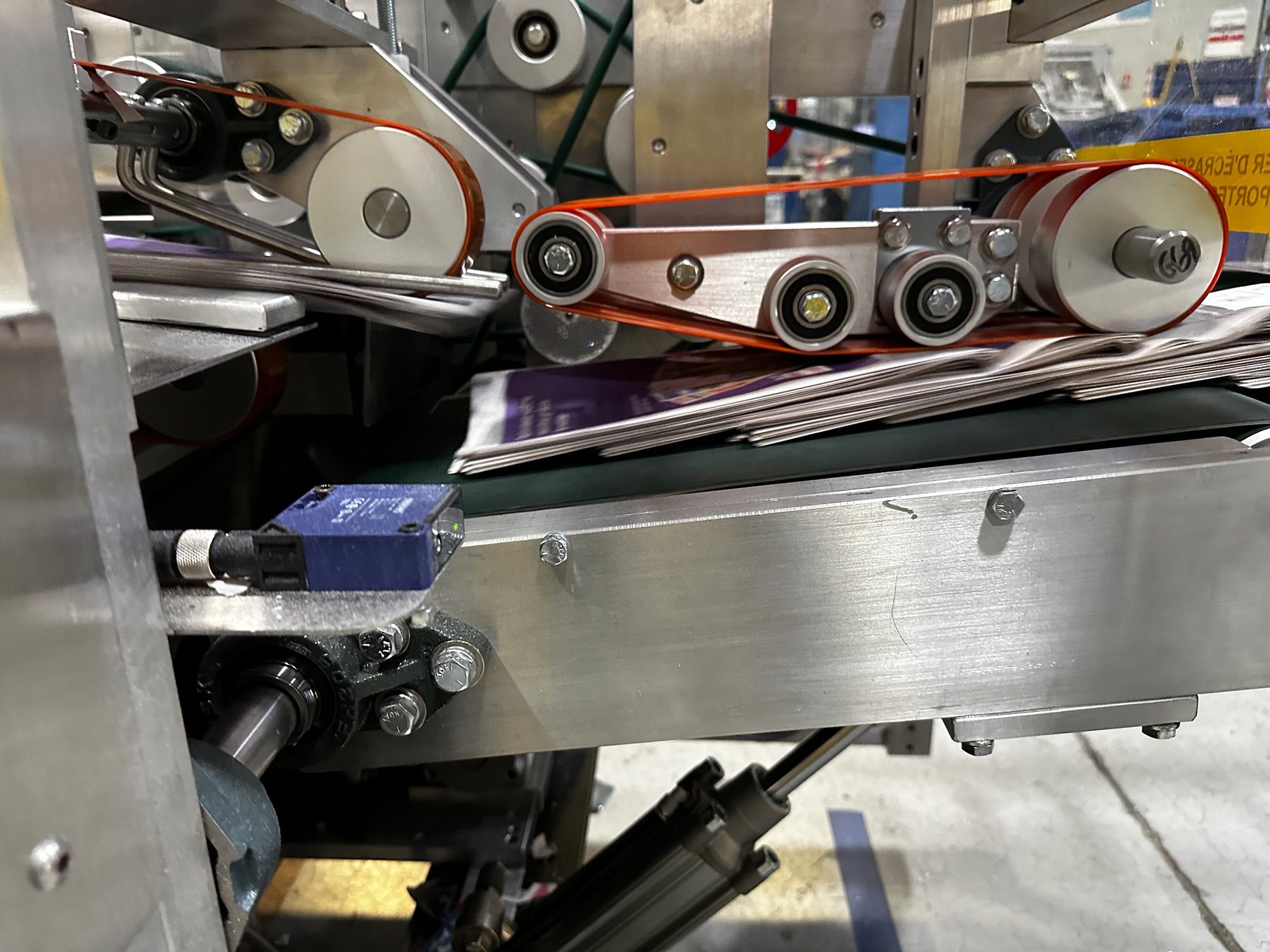

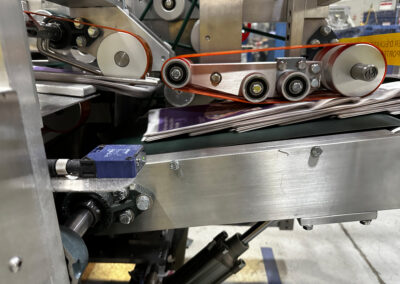

Schneider photoelectric sensors
Transparent polycarbonate panels for product visibility
Magnetic safety door locks
Robust engineering, down to the smallest detail.
________________________________________
HQF-24 TECHNICAL SPECIFICATIONS
Motor System
5 independent motors controlling the machine’s main sections.
Motor Drives
5 Schneider Altivar 312 drives for independent motor speed control.
Tach Following
Manual or automatic mode with press or mailroom signal tracking for synchronized speeds.
Power
230 V — 50/60 Hz
Single- or three-phase operation.
Dimensions
220 in / 5.588 m Length
38 in / 0.97 m Width
70.3 in / 1.785 m Height
With Exit Jogger: 255.6 in / 6.492 m overall length.
Working Height
29.5 in / 0.750 m
Approximate Weight
2,300 lb / 1,043.3 kg
________________________________________
LOVAGHY HQF-24
When every fold matters, every detail matters.
The HQF-24 Smart Folder combines precision, flexibility, reliability and ease of operation to meet the demands of modern high-volume production.
Better folding control.
Smoother production.
Engineered to perform.
